A CLEAN FAÇADE WHEN CLOSED. GENEROUS SHADE WHEN OPEN.
Motorized Full Cassette Awning
Create adjustable outdoor shade while the fully enclosed cassette protects the fabric and folding arms when the awning is retracted.
Motorized Full Cassette Awning with an aluminum enclosure, electrically operated retractable fabric and durable folding arms. When fully retracted, the cassette protects the fabric and mechanical components while maintaining a clean architectural appearance.
- Electric retractable opening and closing
- Fully enclosed aluminum cassette
- Protected fabric and folding arms
- Custom dimensions and color options
- Suitable for patios, balconies and commercial façades
Send dimensions, quantity, application, country and site photographs for an accurate review.
DQ-A PRODUCT DETAILS
DQ-A Full Cassette Awning
A compact, fully enclosed cassette protects the fabric and folding arms when retracted, integrates cleanly with the façade and supports connected multi-unit installations for wider outdoor spaces.

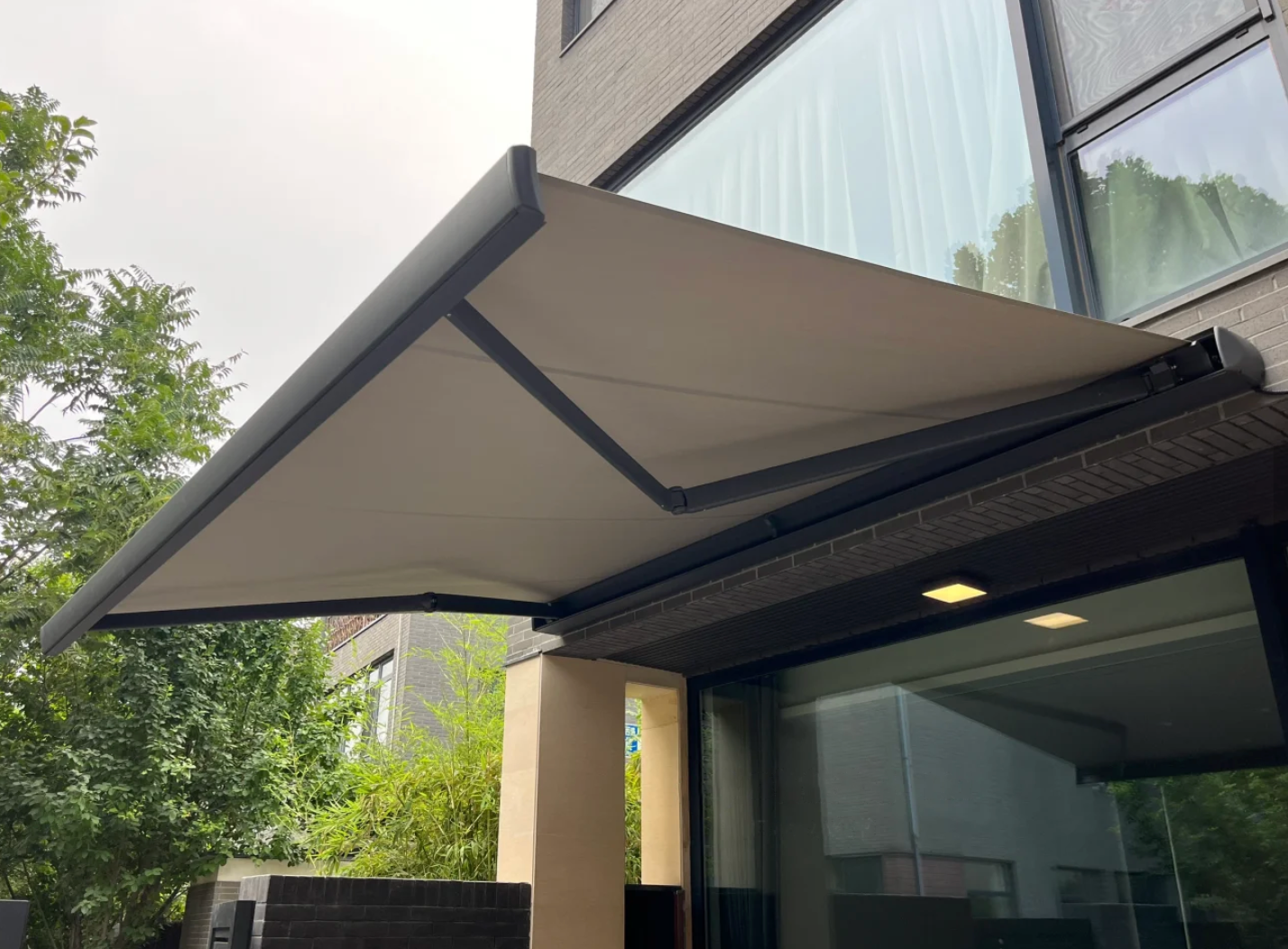

Retracted State
The fabric and arm assembly close inside the aluminum cassette for a clean protected appearance.

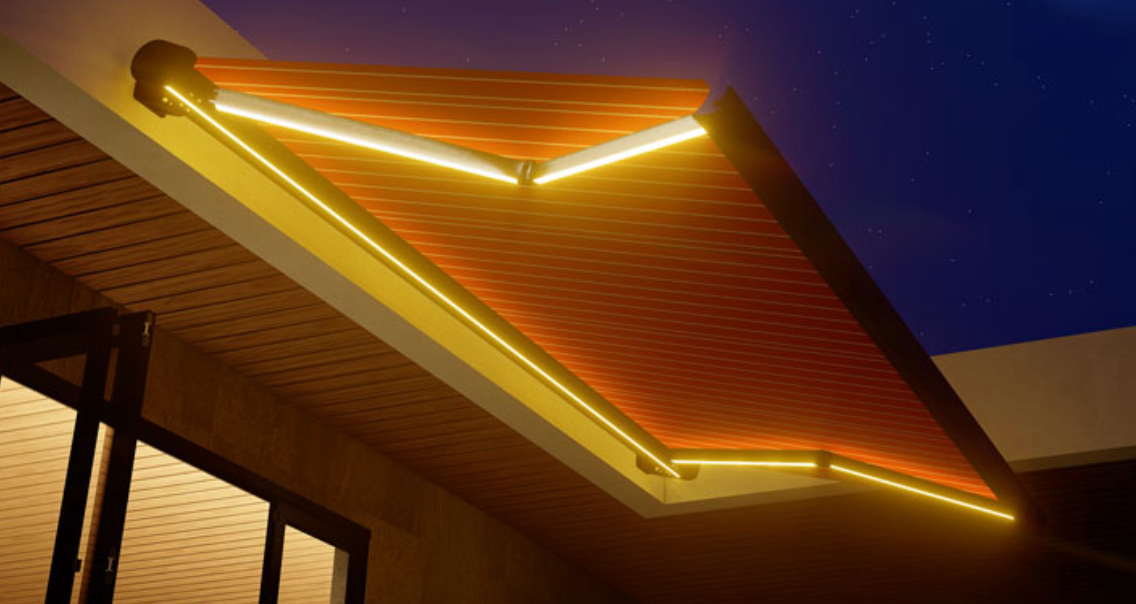

Deployed State

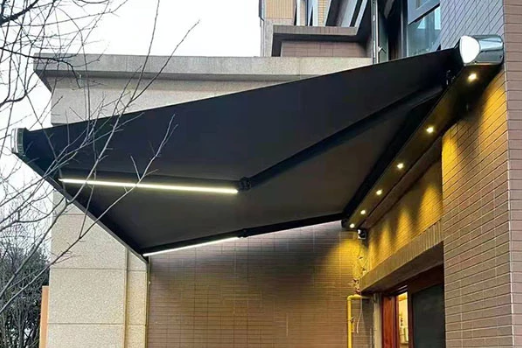

The motorized folding arms extend the canopy to create comfortable exterior shade and optional LED lighting.

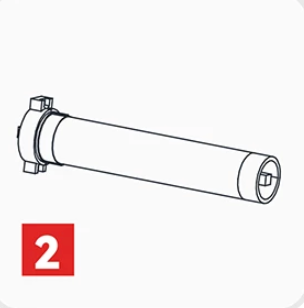

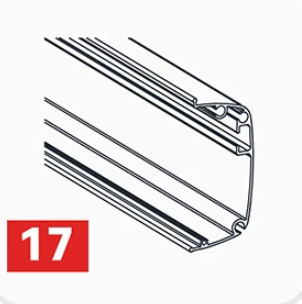

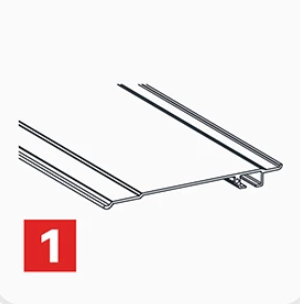

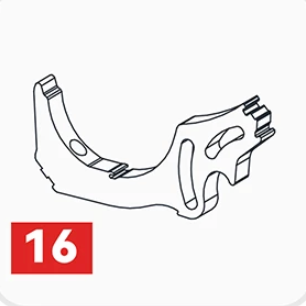

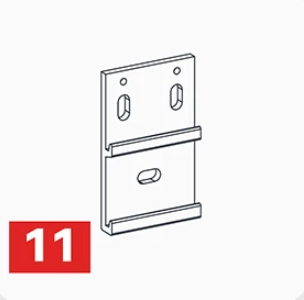

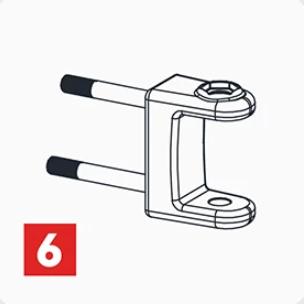

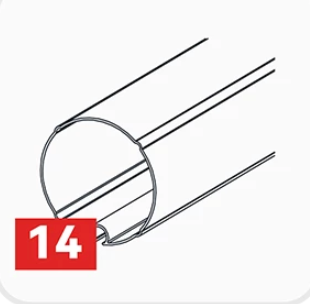

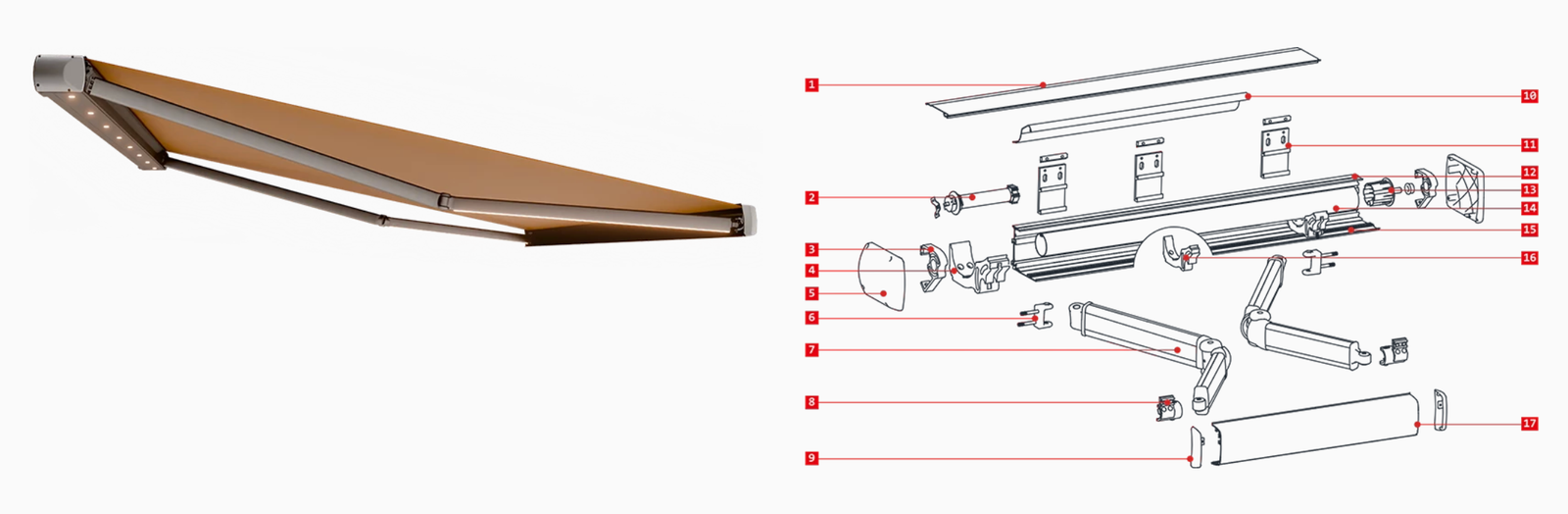

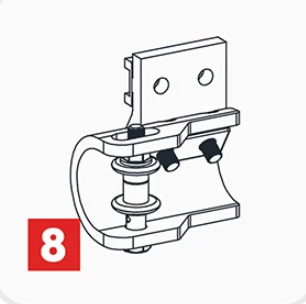

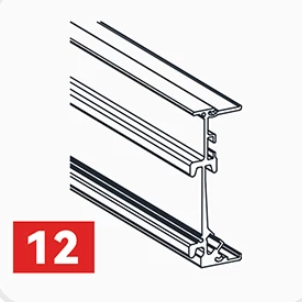

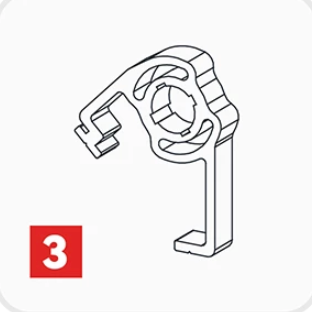

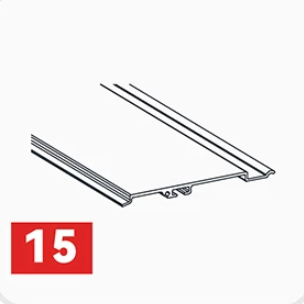

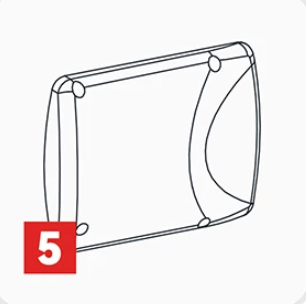

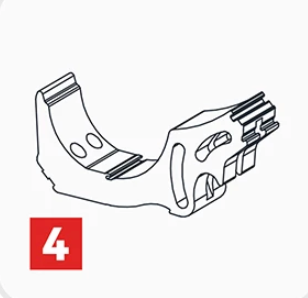

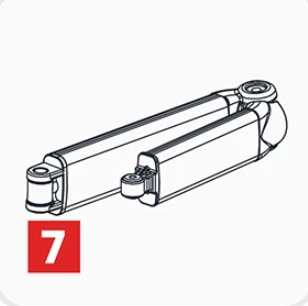

Exploded Parts Diagram

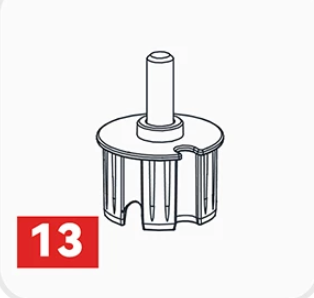

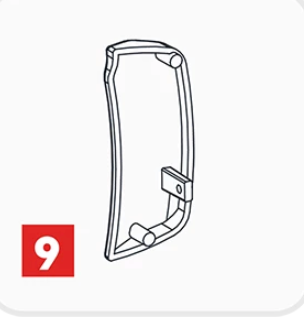

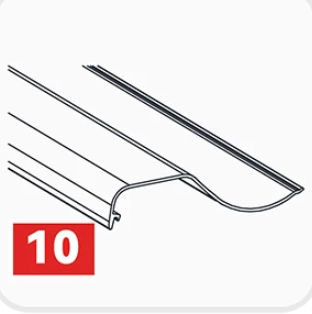

Full Cassette Components

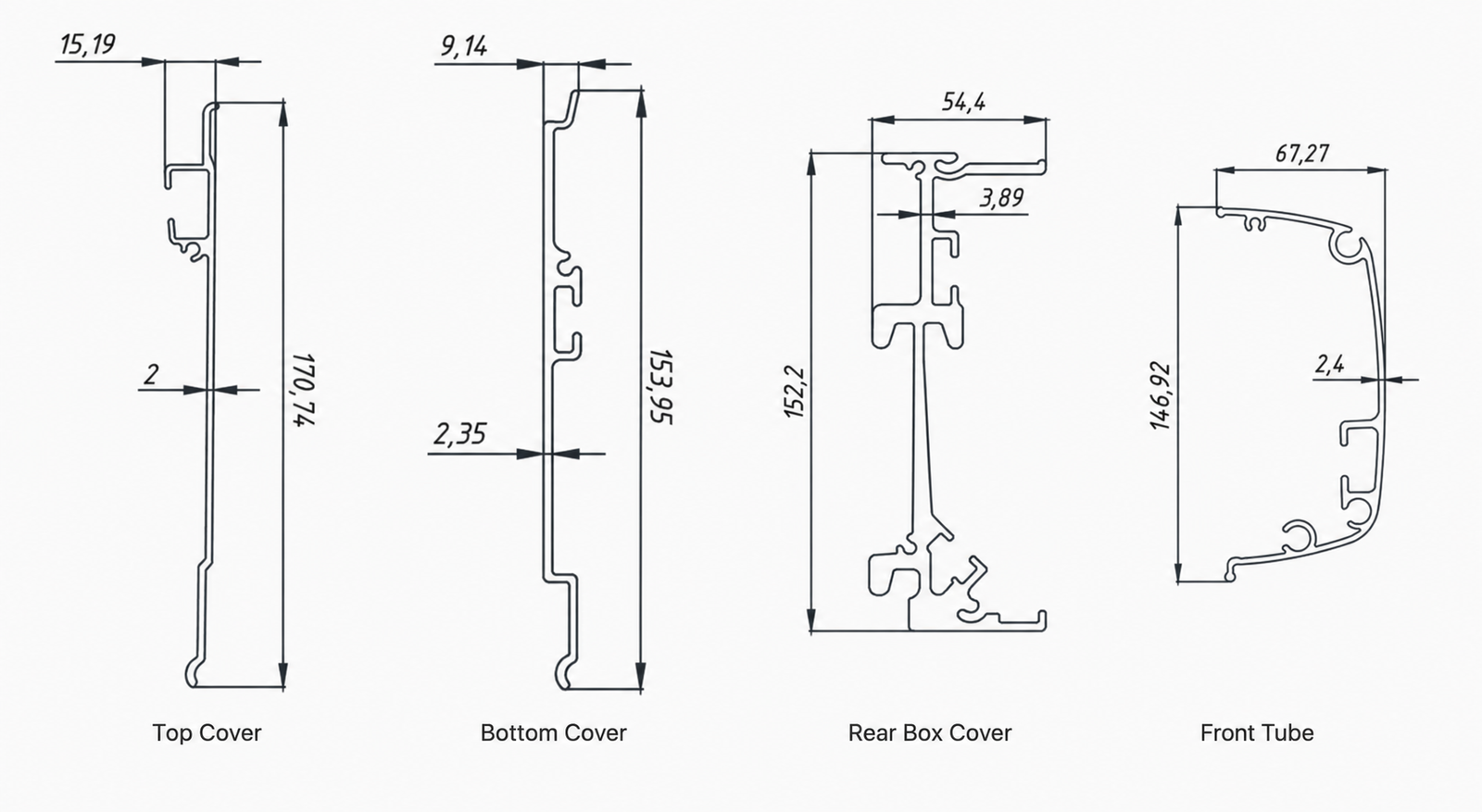

Profile Thickness
PROJECT DIMENSIONS
DQ-A Cassette Awning Size
Available combinations depend on the finished width, arm projection, installation substrate and local wind conditions.
| Projection / Width (m) | 2.1 | 2.5 | 2.6 | 3 | 3.1 | 3.5 | 3.6 | 4 | 4.1 | 4.5 | 5 | 5.5 | 6 | 6.5 | Approx. 7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 2.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| 3 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||
| 3.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
LIGHTING, CONTROL & ACCESSORIES
Optional Configurations
Choose lighting, smart controls, weather sensing and leading-edge options around the way the outdoor space will be used.
Lighting Options

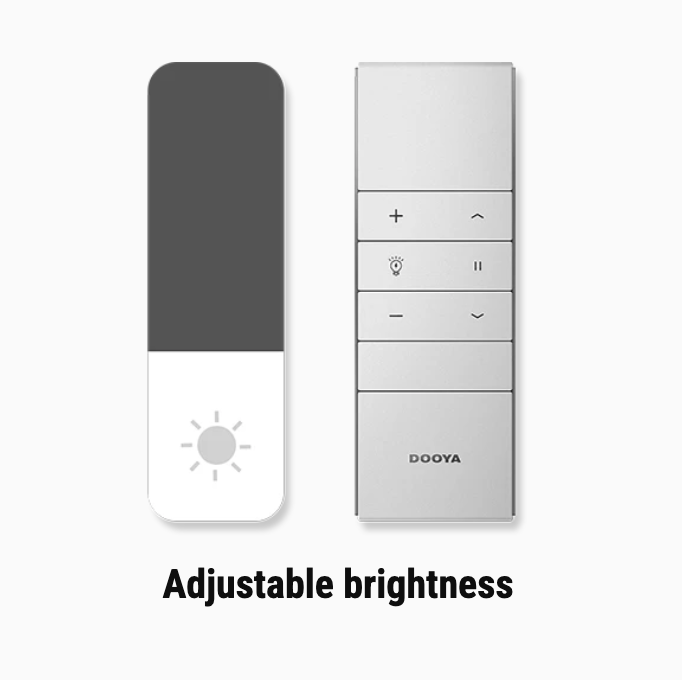

Adjustable Brightness
Integrated dimmable LED lighting for comfortable evening use.

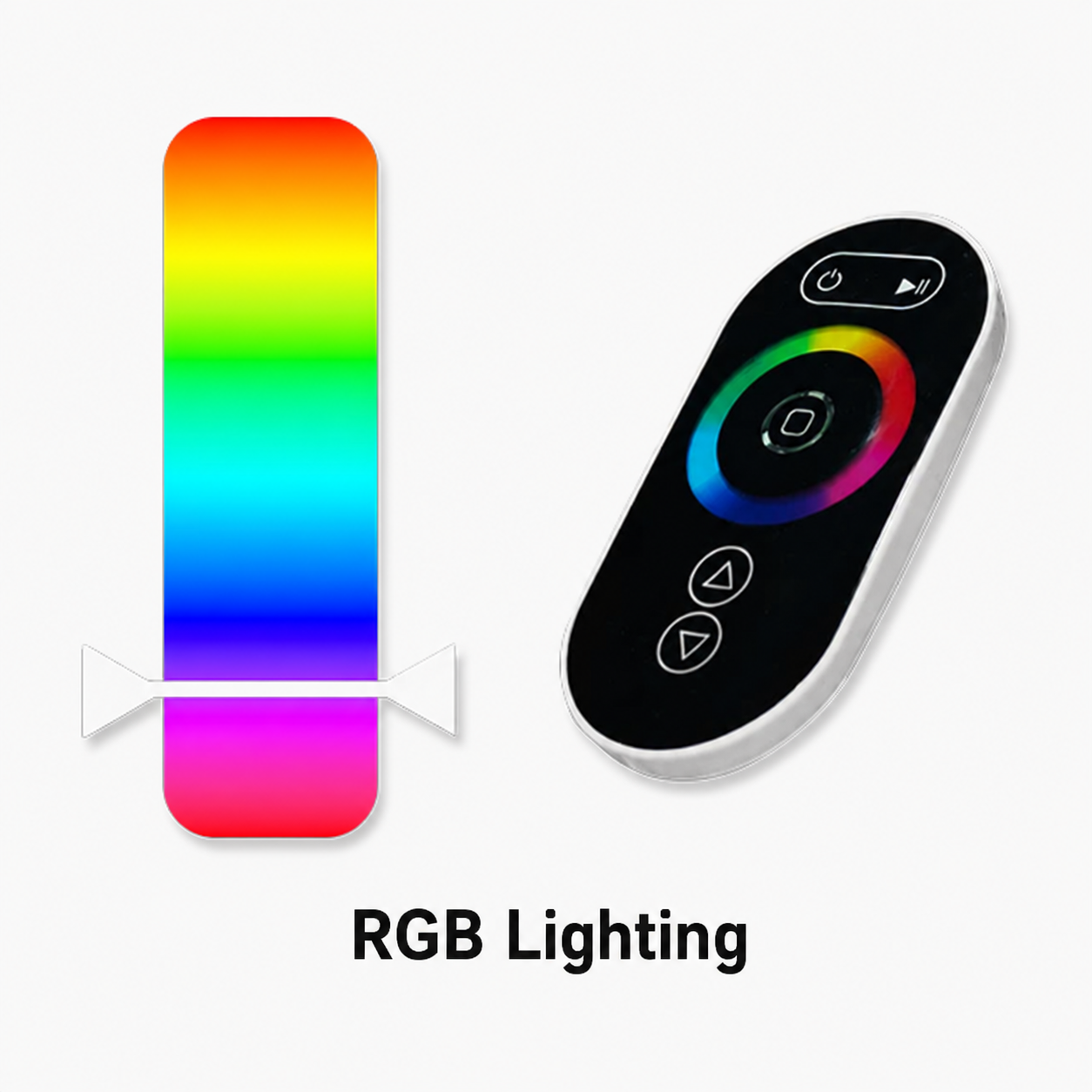

Colorful RGB Lighting
Optional color lighting for hospitality, retail and entertainment settings.
Accessory Options

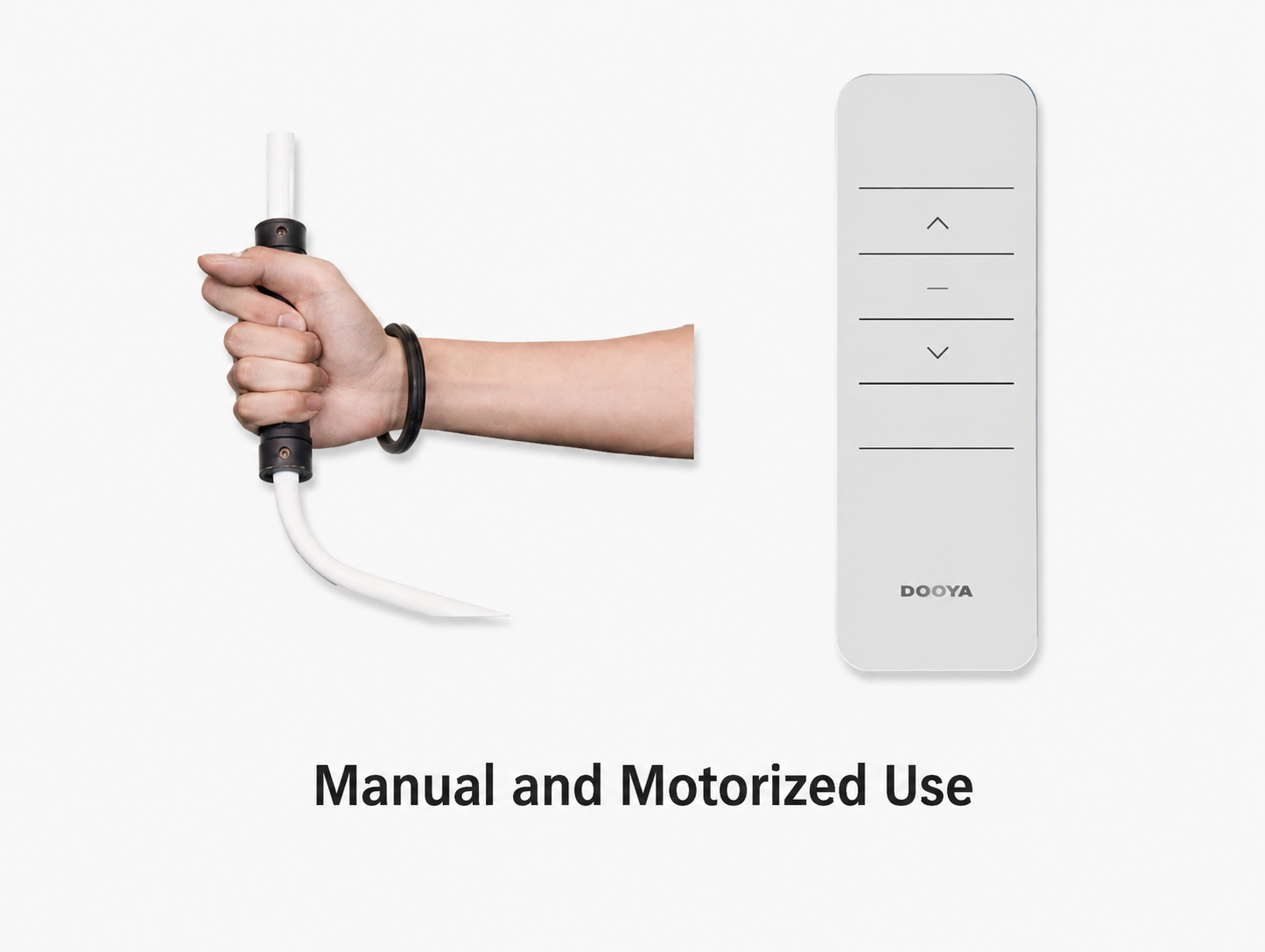

Manual & Electric Dual-Use
Manual override keeps the awning operable when power is unavailable.

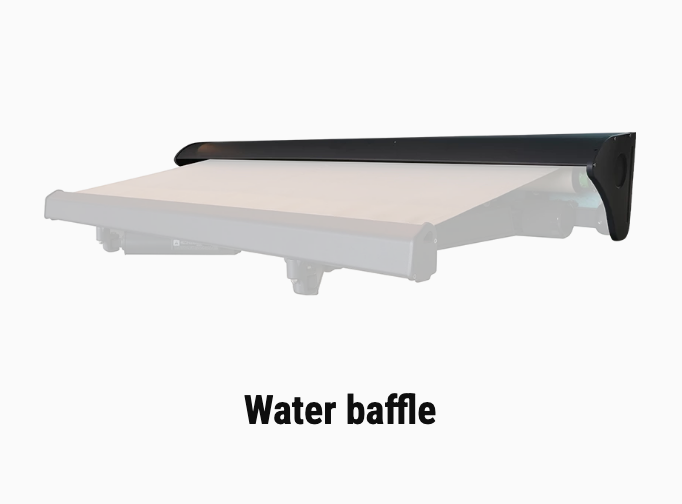

Water Baffle
A managed water edge helps direct runoff away from the protected façade area.
Smartphone Control
Optional connected controls support convenient opening, closing and scheduling.

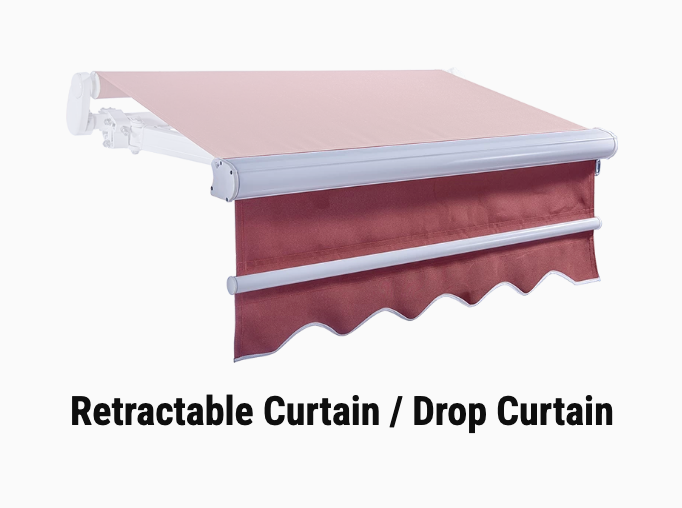

Retractable Curtain / Drop Curtain
Add lower sun screening and extra visual privacy at the leading edge.

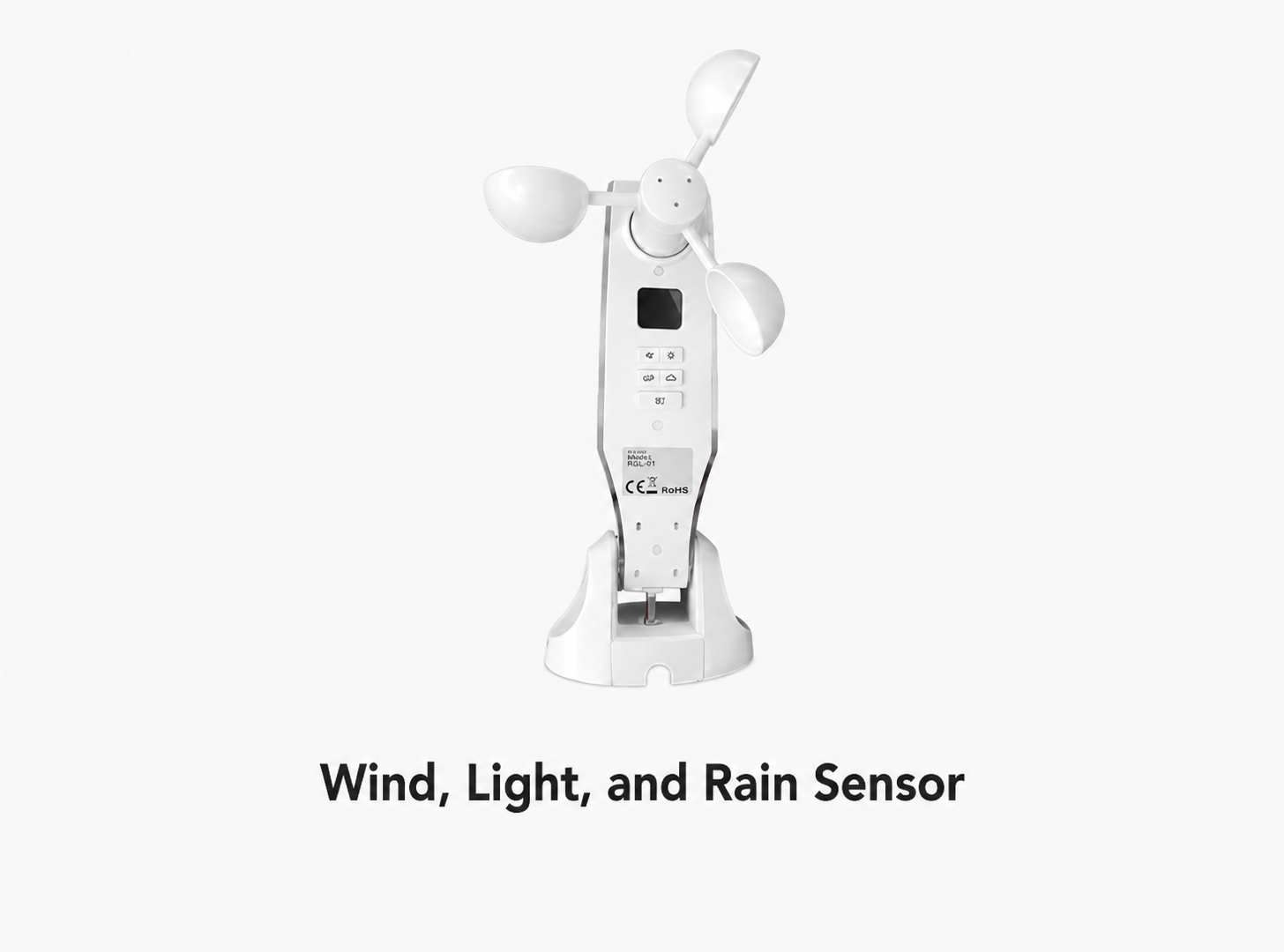

Wind, Light & Rain Sensor
Weather sensors can automate operation around changing outdoor conditions.

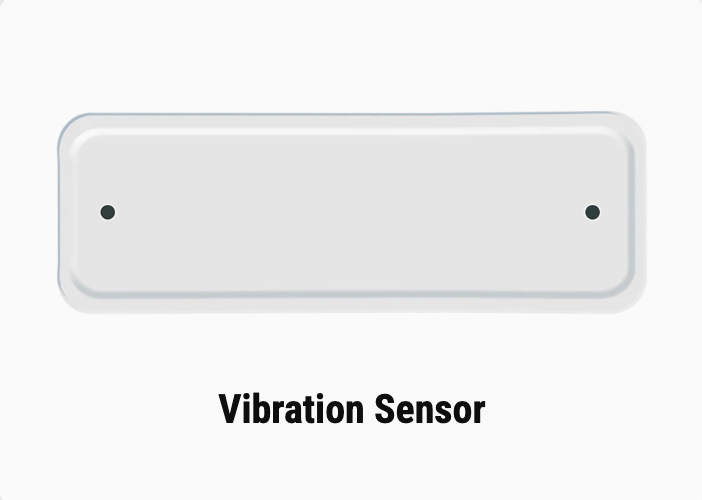

Vibration Sensor
A compact vibration sensor can trigger protective retraction when abnormal movement is detected.

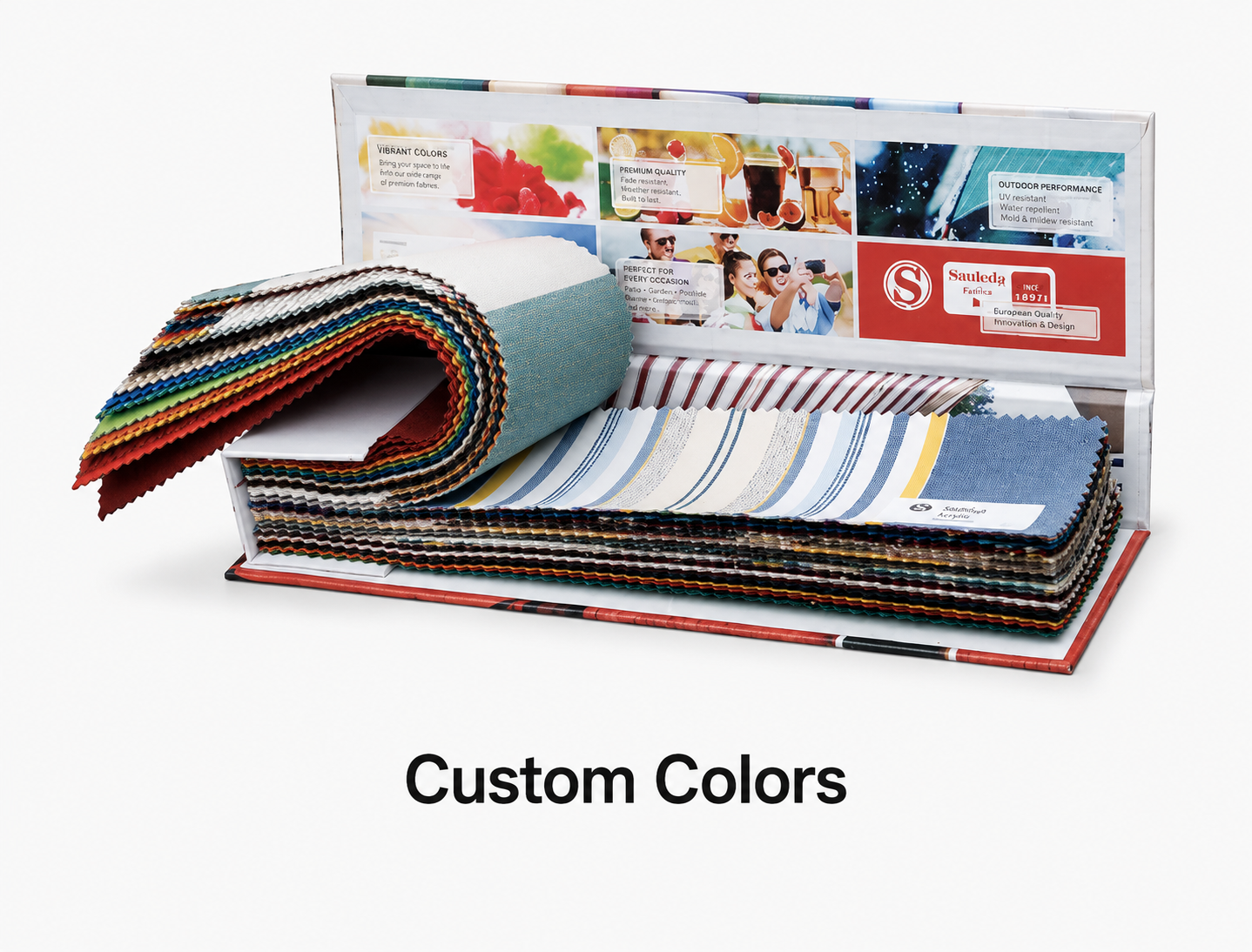

Customization Options
OUTDOOR TEXTILES
Spanish Sauleda Fabric Selection
Solution-dyed acrylic and coated waterproof fabric options combine stable color, outdoor durability and easier maintenance.
Masacril Fabric Series
Premium 100% solution-dyed acrylic fabric provides dependable color stability, UV resistance and a water-repellent finish for exterior awnings.
- Fabric
- 100% Solution-Dyed Acrylic
- Weight
- Approx. 300 g/m²
- Water repellency
- 360 mm
- Roll length
- 60 m / 100 m
- Width
- 120 cm / 47 in
- Finish
- Protective outdoor coating
Quality
SMART SHADING DRIVE
Motor Introduction
Choose the motor and control package around the awning size, required automation and destination-market electrical standard.
Dooya Motor
A proven tubular-motor option for remote-controlled residential and commercial shading systems.
Somfy Motor
A premium smart-shading option for connected controls and international architectural projects.
WHY THIS SYSTEM
Main Feature
Every configuration is reviewed as a complete cassette, arm, fabric, control and installation system.
Full Cassette Design
The fabric and curved arms retract completely inside the compact aluminum cassette for protection and a premium appearance.
Sunshade & Heat Insulation
Reduce direct solar exposure and extend usable outdoor space for homes, shops and hospitality venues.
Premium Materials
The cassette housing and folding arms use durable aluminum alloy components for reliable exterior service.
LED Lighting System
Integrated lighting supports comfortable evening use without adding a separate fixture line.
Electric Remote Control
Operate the awning from a remote, wall switch or compatible smart-control system.
Highly Customizable

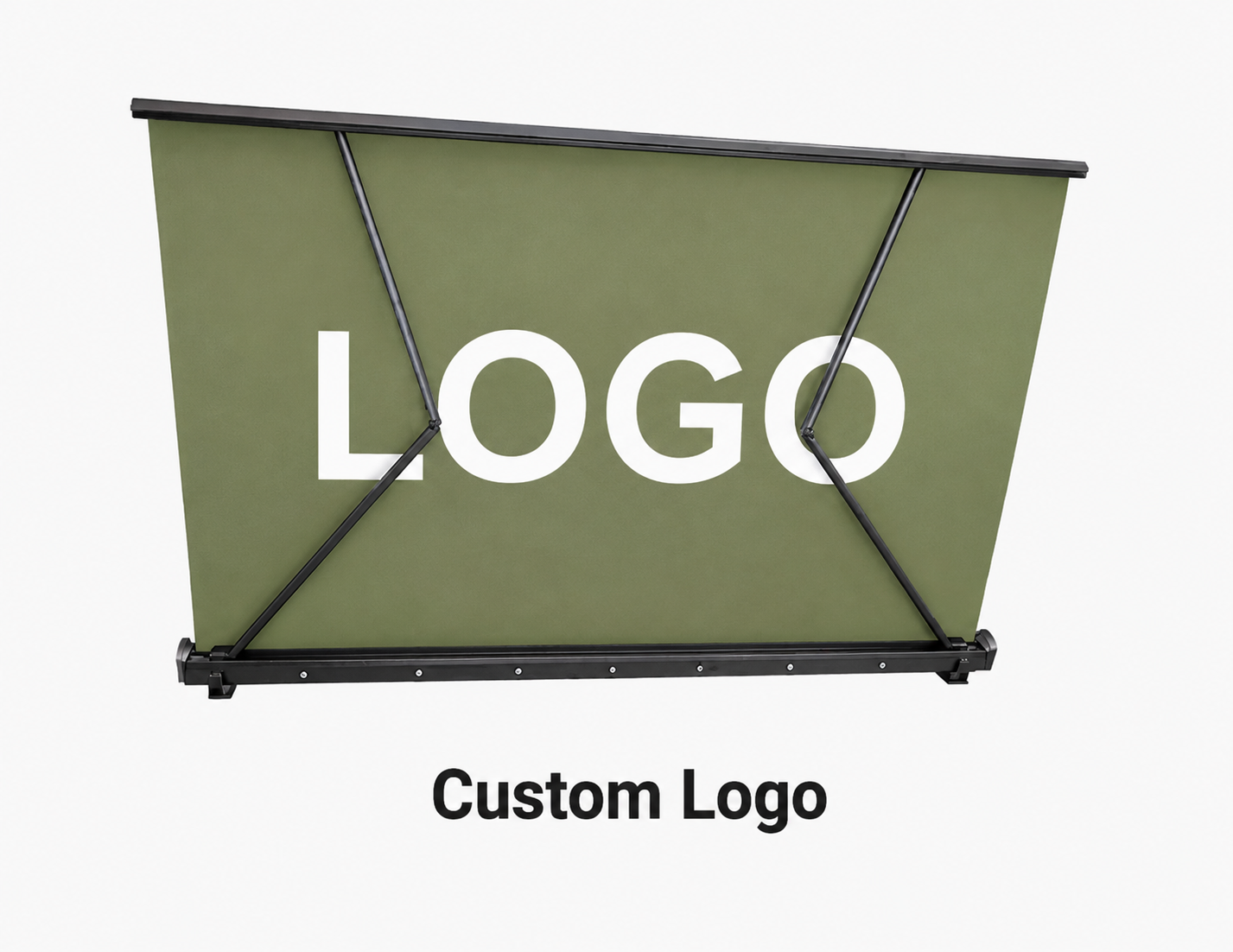

Dimensions, color, fabric, logo, lighting and control options are configured for the project.
TECHNICAL FRAMEWORK
Product Parameters
Final dimensions, inclination, controls and installation details are confirmed for the selected full cassette model and project conditions.
| Series | DQ-A Cassette Awning | DQ-B Cassette Awning |
| Regular size range | 1.5 × 2.0 m to 3.5 × 6.0 m | 1.5 × 2.0 m to 3.0 × 6.0 m |
| Fabric selection | Chinese outdoor fabric or Spanish Sauleda fabric | |
| Adjustable inclination | 15°–20° | 0°–25° |
| Installation height | Recommended from 2.7 m, subject to site review | |
| Installation method | Wall mounting; ceiling mounting available by project | |
| Motor options | Somfy PRO or compatible Chinese-made tubular motor | |
| Frame color | Standard colors or custom powder coating | |
| Functions | Sunshade, heat control, façade enhancement and optional lighting | |

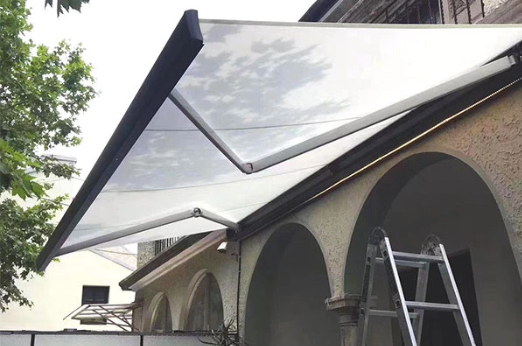

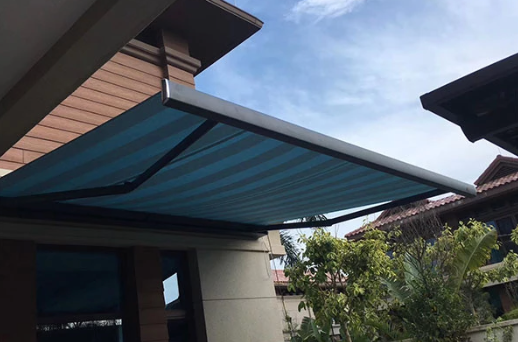

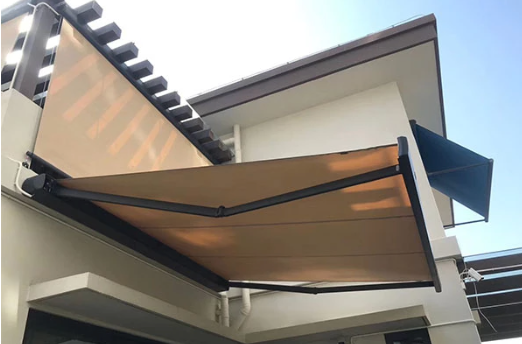

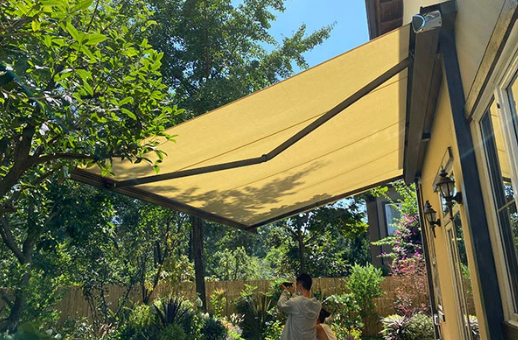

PROJECT GALLERY
More Cases

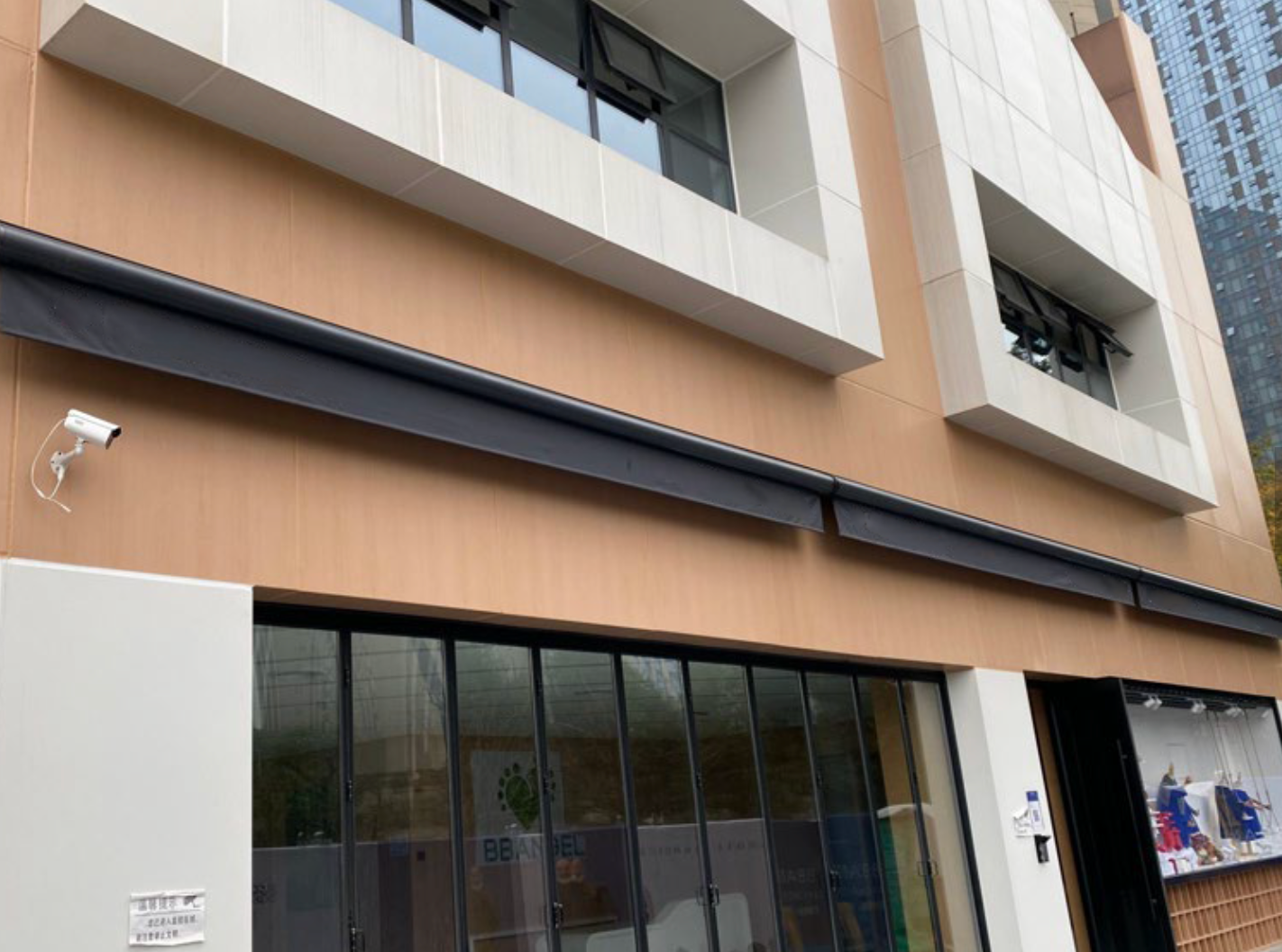

Representative residential and commercial full cassette awning applications.
